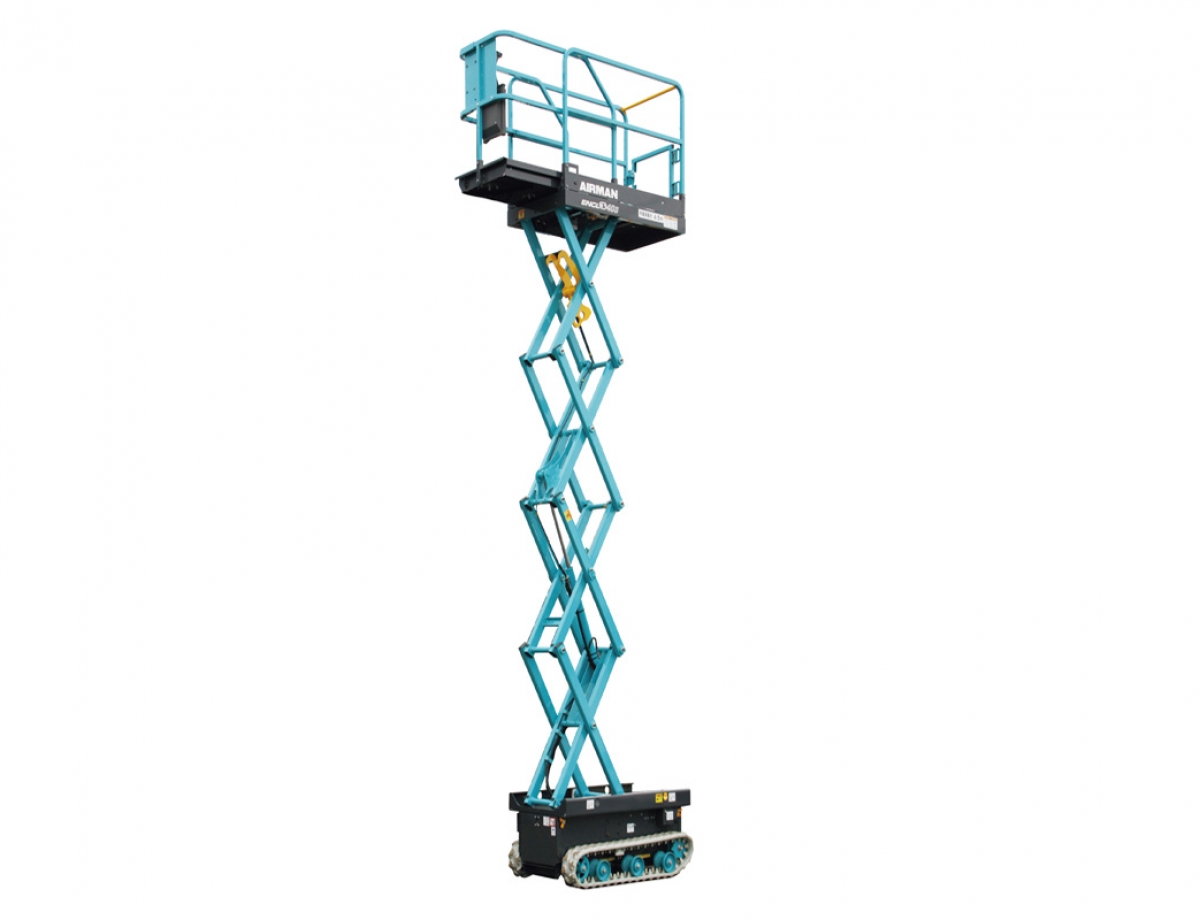

Scissor Lift

Scissor Lift

In just 10 years of beginning production, we now have No.1 market share in the Japanese domestic market.

(Scissors lift market)

All of our models have advanced safety functions and feature a compact design.

If you are looking for safer, smaller equipment, we can offer the best solutions for you.

PRODUCT SPECIFICATION

-WHEEL & RUBBER CRAWLER TYPE (ENCL/ENTL SERIES)-

Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
Product Max load (kg) Max. height above ground (mm[inch]) Type L×W×H (mm[inch]) Machine weight (kg)
ENCL040S-3 220 4000[157.5] 4-stage X-type pantographs with one end fixed 1390×780×1840 [54.7×30.7×72.4] Machine weight (kg) 630 630
ENCL045S-3 200 4500[177.2] 4-stage X-type pantographs with one end fixed 1390×780×1840 [54.7×30.7×72.4] 650
ENCL061S-3 250 6100[240.2] 4-stage X-type pantographs with one end fixed 1955×990×1990 [77.0×39.0×78.3] 1410
ENCL068S-3 250 125 4-stage X-type pantographs with one end fixed 1955×990×1990 [77.0×39.0×78.3] 1580
ENTL040S-3 250 4000[157.5] 4-stage X-type pantographs with one end fixed 1390×750×1830 [54.7×29.5×72.0] 660
ENTL045S-3 200 115 4-stage X-type pantographs with one end fixed 1390×750×1830 [54.7×29.5×72.0] 750
ENTL061S-3 250 250 4-stage X-type pantographs with one end fixed 1750×760×1945 [68.9×29.9×76.6] 1230
ENTL080S-3 250 8000[315.0] 4-stage X-type pantographs with one end fixed 2300×810×2140 [90.6×31.9×84.3] 2280
ENTL099S-3 320 9900[390.0] 5-stage X-type pantographs with one end fixed 2300×1300×2260 [90.6×51.2×89.0] 2300

--HAND-PUSH TYPE (ENHL SERIES)--

Product Max load (kg) Max. height above ground (mm[inch]) Min.height Above ground (mm[inch]) Internal Dimensions when extended)×w×h (mm[inch]) Type L×W×H (mm[inch])
Product Max load (kg) Max. height above ground (mm[inch]) Min.height Above ground (mm[inch]) Internal Dimensions when extended)×w×h (mm[inch]) Type L×W×H (mm[inch])
Product Max load (kg) Max. height above ground (mm[inch]) Min.height Above ground (mm[inch]) Internal Dimensions when extended)×w×h (mm[inch]) Type L×W×H (mm[inch])
ENHL032-4 150 3200[126.0] 540[21.3] 1200×655×950 [47.2×25.8×37.4] 3-stage X-type pantographs with one end fixed 1300×750×1490 [51.2×29.5×58.7]
ENHL038-4 150 3800[149.6] 540[21.3] 1430×655×950 [56.3×25.8×37.4] 3-stage X-type pantographs with one end fixed 1530×750×1490 [60.2×29.5×58.7]
ENHL046-4 150 4600[181.1] 620[24.4] 1430×655×950 [56.3×25.8×37.4] 4-stage X-type pantographs with one end fixed 1530×750×1570 [60.2×29.5×61.8]
