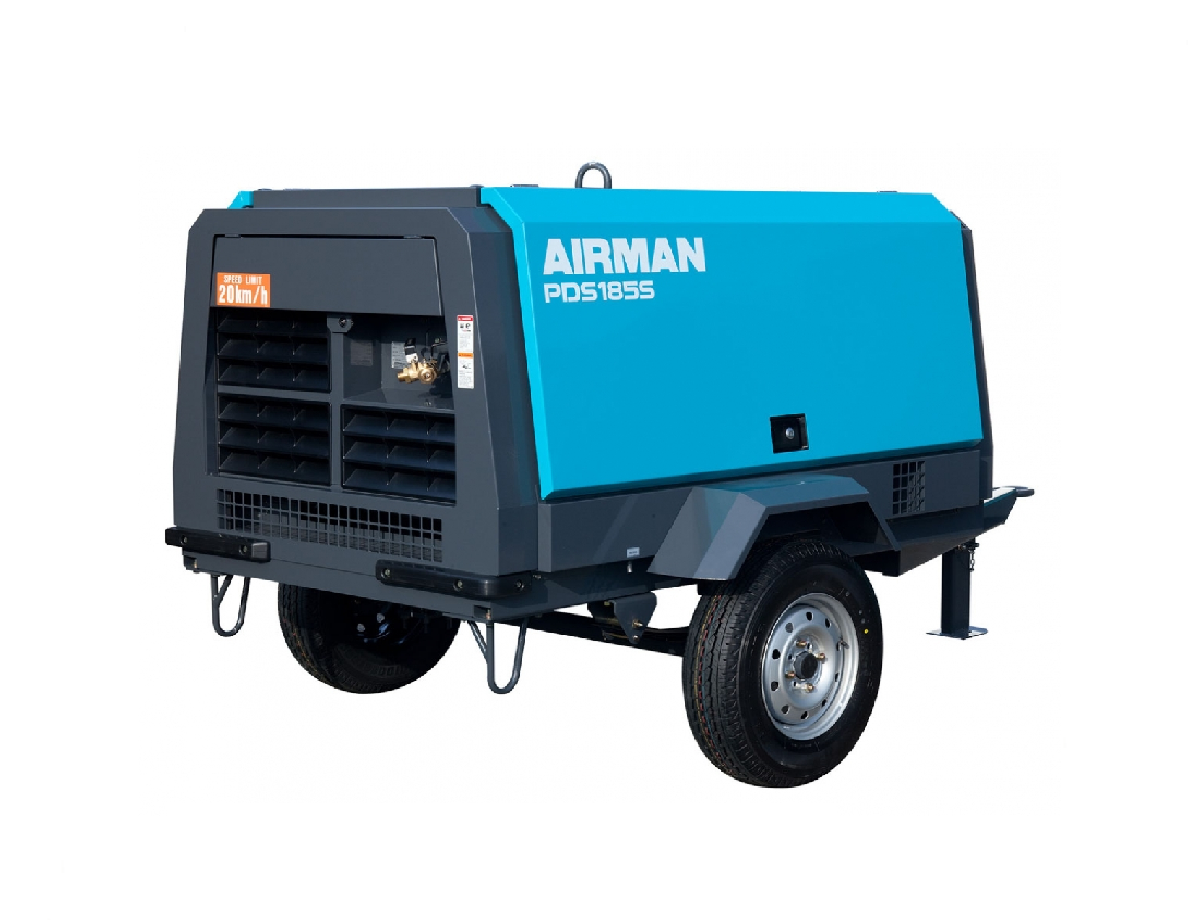

Diesel Engine Air Compressor

Standard (PDS Series)

Diesel Engine Air Compressor

AIRMAN diesel engine air compressor has more than 80 years of experience with Japanese customers.

Our flexible and high durability compressor can be useful for a long time in construction, foundation, hill slope reinforcement, water well drilling, quarry and mining, shipyard work (sand blasting & spraying), and oil & gas (sand blasting, spraying, pipe leak test) job sites.

Please send your inquiry to us, our distributor will recommend you the suitable model.

PRODUCT SPECIFICATION

-BOX SERIES-

Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
PDS65L-5C5 1-stage oil cooled, screw compressor. 1.84 0.7MPa KUBOTA D722-K3A -
PDS80S-5C5 Rotary Twin Screw,Single-Stage,Oil-cooled 2.3 0.7(7.1)(102) KUBOTA D902-K3A Below 94
PDS100S-5C5 Rotary Twin Screw,Single-Stage,Oil-cooled 2.8 0.7(7.1)(102) KUBOTA D1105-K3B Below 94
PDS130S-5C3 Rotary Twin Screw,Single-Stage,Oil-cooled 3.7 0.69(7.0)(100) YANMAR 3TNV88-BDHK 94
PDS185S-5C5 Rotary Twin Screw,Single-Stage,Oil-cooled 5.2 0.7(7.14)(102) YANMAR 4TNV88-BXDHKSR 95
PDS185S-7C5 Rotary Twin Screw,Single-Stage,Oil-cooled 5.2 0.7(7.14)(102) YANMAR 4TNV88-BXDHKSR 94
PDS265S-5B2 Rotary Twin Screw,Single-Stage,Oil-cooled 7.5 0.69(7.0)(100) YANMAR 4TNV98T-NHK 98

-TRAILER SERIES-

Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
Product Type Free Air Delivery [m3/min] Rated Operating Pressure [mpa][kgf/cm2][psi] Make/Model Sound Power Level In Decibels db
PDS185S-6C2 Rotary Twin Screw,Single-Stage,Oil-cooled 5.2 0.69(7.0)(100) YANMAR 4TNV88-BDHKS 98
PDS265S-4B2 Rotary Twin Screw,Single-Stage,Oil-cooled 7.5 0.69(7.0)(100) YANMAR 4TNV98T-NHK 98
PDS400S-6B5 Rotary Twin Screw,Single-Stage,Oil-cooled 11.3 0.7(7.14)(102) KUBOTA V3800DI-TI-E2B-COHE1 100
PDS655S-4B2 Rotary Twin Screw,Single-Stage,Oil-cooled 18.5 0.7(7.14)(102) HINO J08C-V 102
PDS750S-4B1 Rotary Twin Screw,Single-Stage,Oil-cooled 21.2 0.7(7.14)(102) HINO J08C-UT 104
