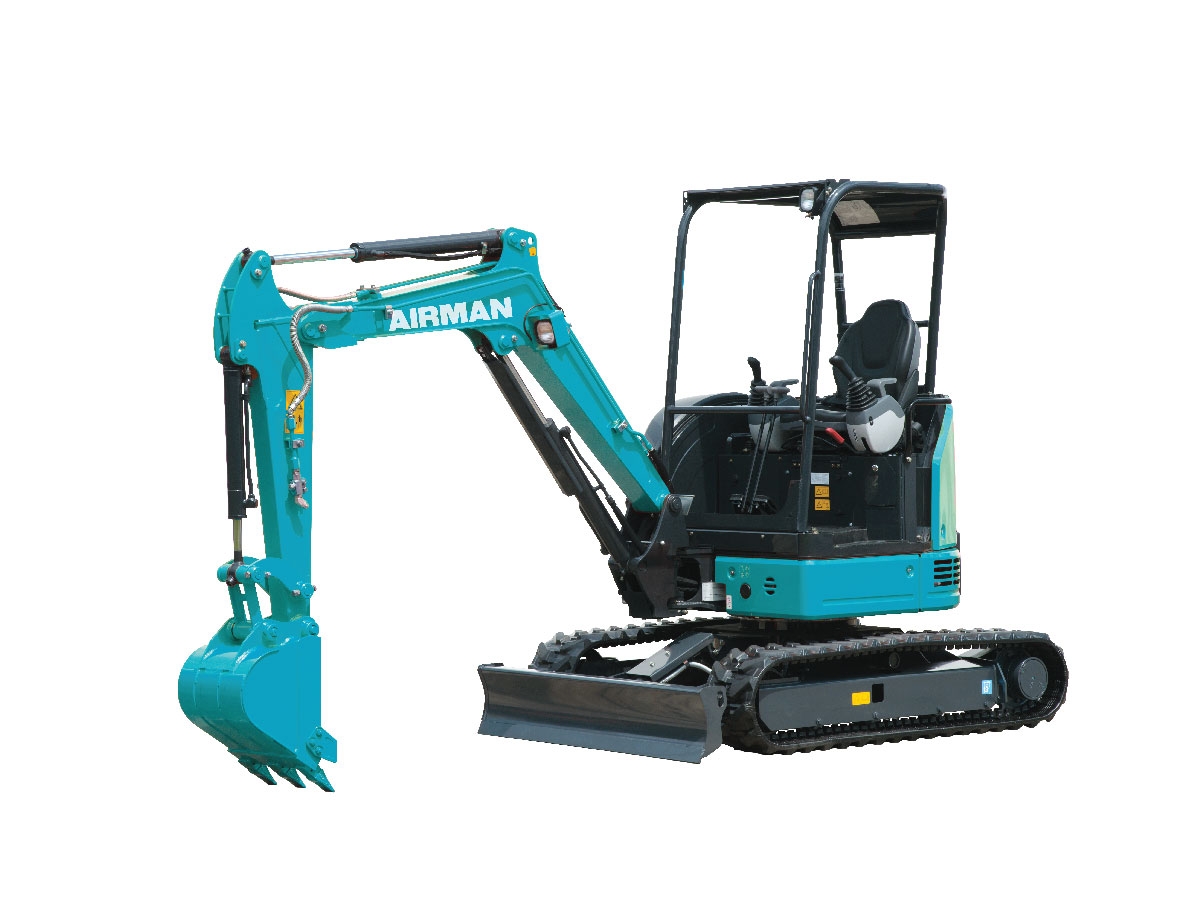

AX26U-6A
By improving operator ease of use as well as providing advanced functions and high performance for digging, loading, leveling and other work (utility), we have created a new mini excavator that is certain to satisfy customers.
Specification
| MODEL | AX26U-6A |
|---|---|
| *SPECIFICATIONS | |
| Roof Type | 4-pillar Canopy/Cab |
| Shoe Type | Rubber shoe/Steel Shoe |
| *WEIGHT & CAPACITIES | |
| Machine weight (kg) | 2630/2770 |
| Budget capacity [m3] | 0.08 |
| Bucket width with side cutters(mm) | 500 |
| *ENGINE | |
| Make/Model | YANMAR 3TNV76 |
| Type | Swirl combustion chamber |
| Rated output/Rotating speed (kw/min-1[ps/rpm]) | 14.5/2500[19.4/2500] |
| Fuel tank capacity(l) | 34 |
| *WORKING RANGE | |
| Max. digging reach (mm) | 4630 |
| Max. digging reach at ground (mm) | 4490 |
| Max. digging depth (mm) | 2590 |
| Max. cutting height (mm) | 4450/4280 |
| Min.swing radius (mm) | 1280(1300) |
| Rear edge swing radius (mm) | 795 |
| *DIMENSION | |
| Max. transport length × under carriage width ×overall height(mm) | 4160×1500×2430 |
| Designated emission regulation | JPN Tier3 |
|
|
