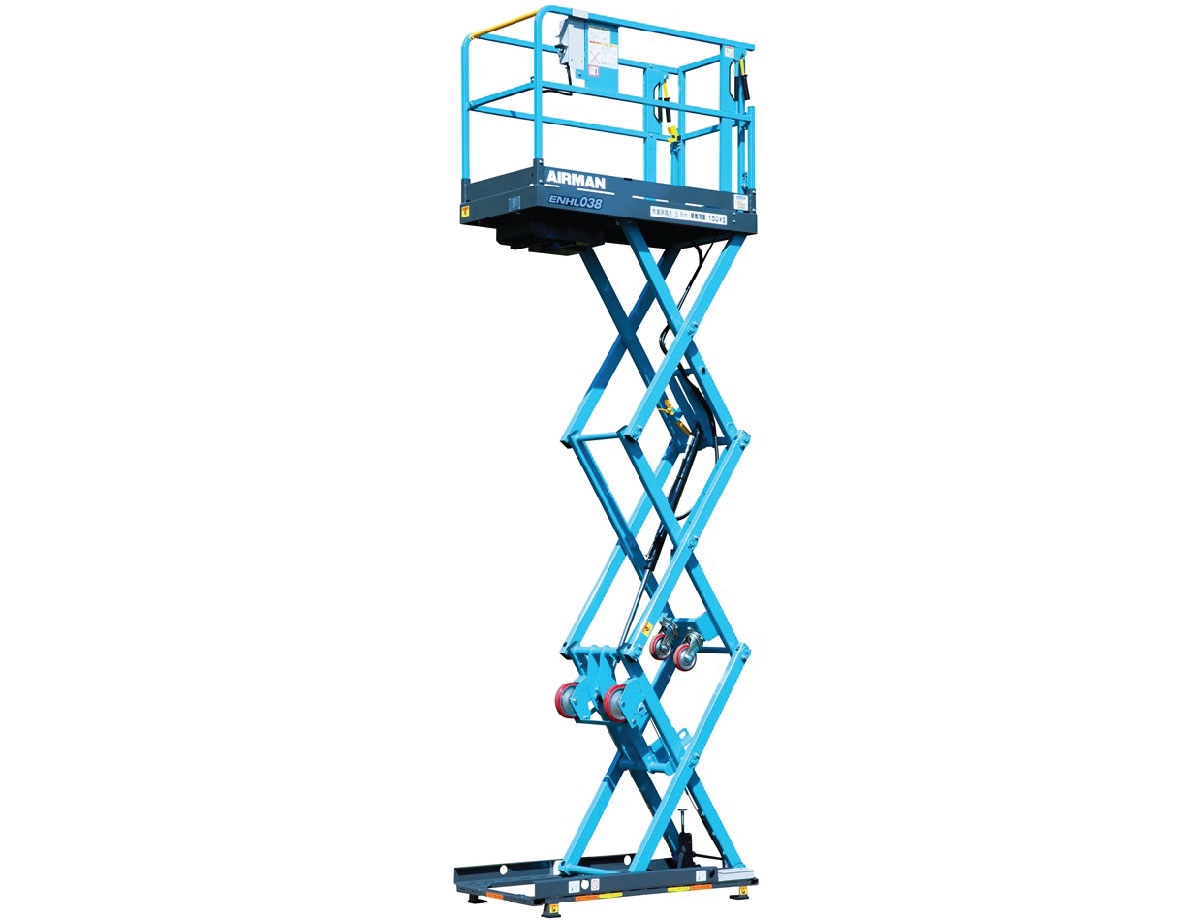

ENHL038-4
In just 10 years of beginning production, we now have No.1 market share in the Japanese domestic market.
(Scissors lift market)
All of our models have advanced safety functions and feature a compact design.
If you are looking for safer, smaller equipment, we can offer the best solutions for you.
Specification
| MODEL | ENHL038-4 |
|---|---|
| *WORK PLATFORM | |
| Max load (kg) | 150 |
| Max. height above ground (mm[inch]) | 3800[149.6] |
| Min. height above ground (mm[inch]) | 540[21.3] |
| *SCISSORS LIFT | |
| Type | 3-stage X-type pantographs with one end fixed |
| Lifting speed (up / down) (sec) | 16/27 |
| *POWER SUPPLY | |
| Input power supply (V) | Single-phase AC 100～110 / 200～240 |
| Battery voltage (V) | DC12 |
| Battery capacity (5 hour rate) (Ah) | 65 |
| Battery | Deep Cycle Battery×1 |
| *DIMENSION & WEIGHT | |
| Length x Width x Height (mm[inch]) | 1530×750×1490 [60.2×29.5×58.7] |
| Machine weight (kg) | 375 |
|
|
