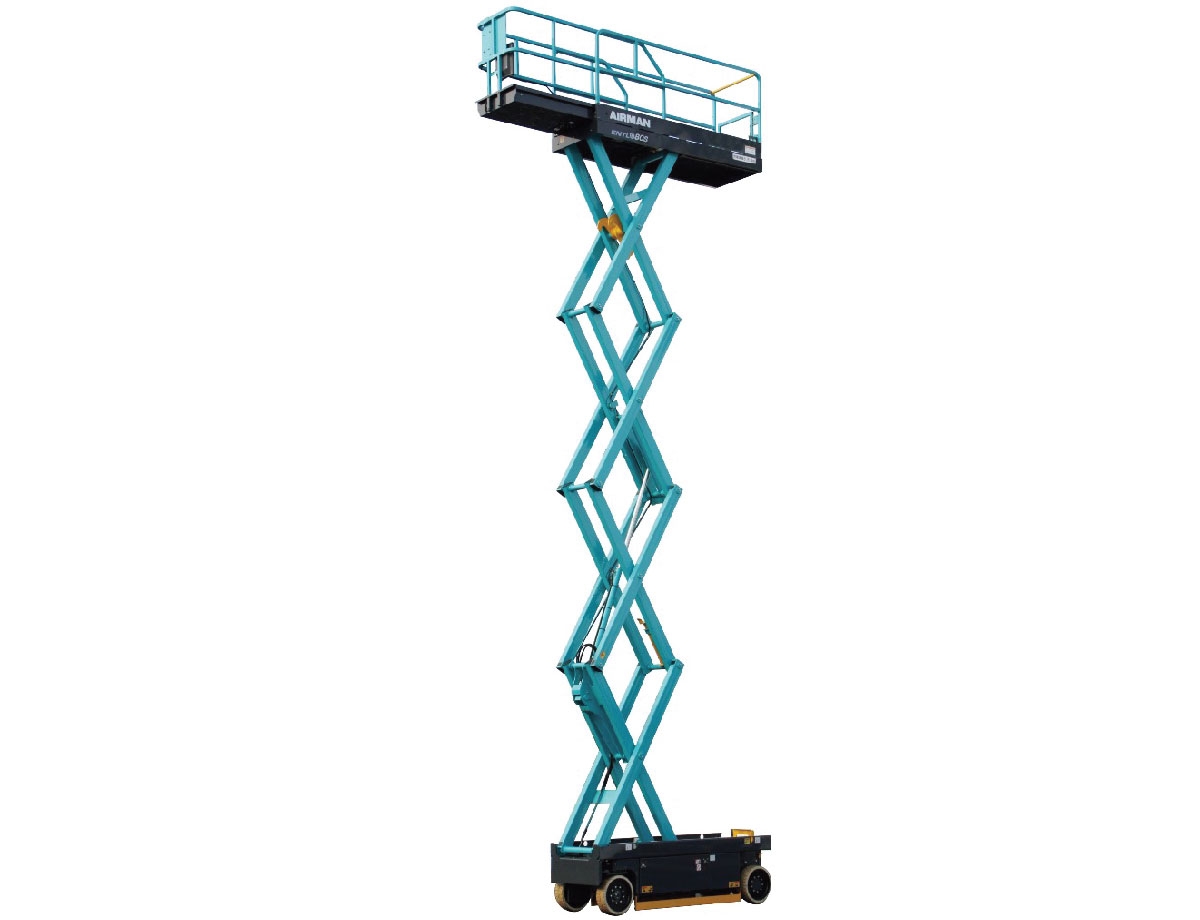

ENTL080S-3
In just 10 years of beginning production, we now have No.1 market share in the Japanese domestic market.
(Scissors lift market)
All of our models have advanced safety functions and feature a compact design.
If you are looking for safer, smaller equipment, we can offer the best solutions for you.
Specification
| MODEL | ENTL080S-3 |
|---|---|
| *WORK PLATFORM | |
| Max load (kg) | 250 |
| Max. height above ground (mm[inch]) | 8000[315.0] |
| Extension platform sliding capacity （mm[inch]） | 1000[39.4] |
| *SCISSORS LIFT | |
| Type | 4-stage X-type pantographs with one end fixed |
| Lifting speed (up / down) (sec) | 30/36 |
| *TRAVEL MOTOR | |
| Driving | DC Motor |
| Travel speed (max./min.) (km/hr) | 0 - 3.2 / 0 - 2.5 |
| Gradeability (°) | 12 |
| Min. turning radius (mm[inch]) | 1960[77.2] |
| Traveling | Wheel type |
| *POWER SUPPLY | |
| Input power supply (V) | Single-phase AC 100～110 / 200～240 |
| Battery voltage (V) | DC24 |
| Battery capacity (5 hour rate) (Ah) | 200 |
| Battery | EB100 x 4 |
| *DIMENSION & WEIGHT | |
| Length x Width x Height (mm[inch]) | 2300×810×2150 [90.6×31.9×84.6] |
| Machine weight (kg) | 2280 |
|
|
