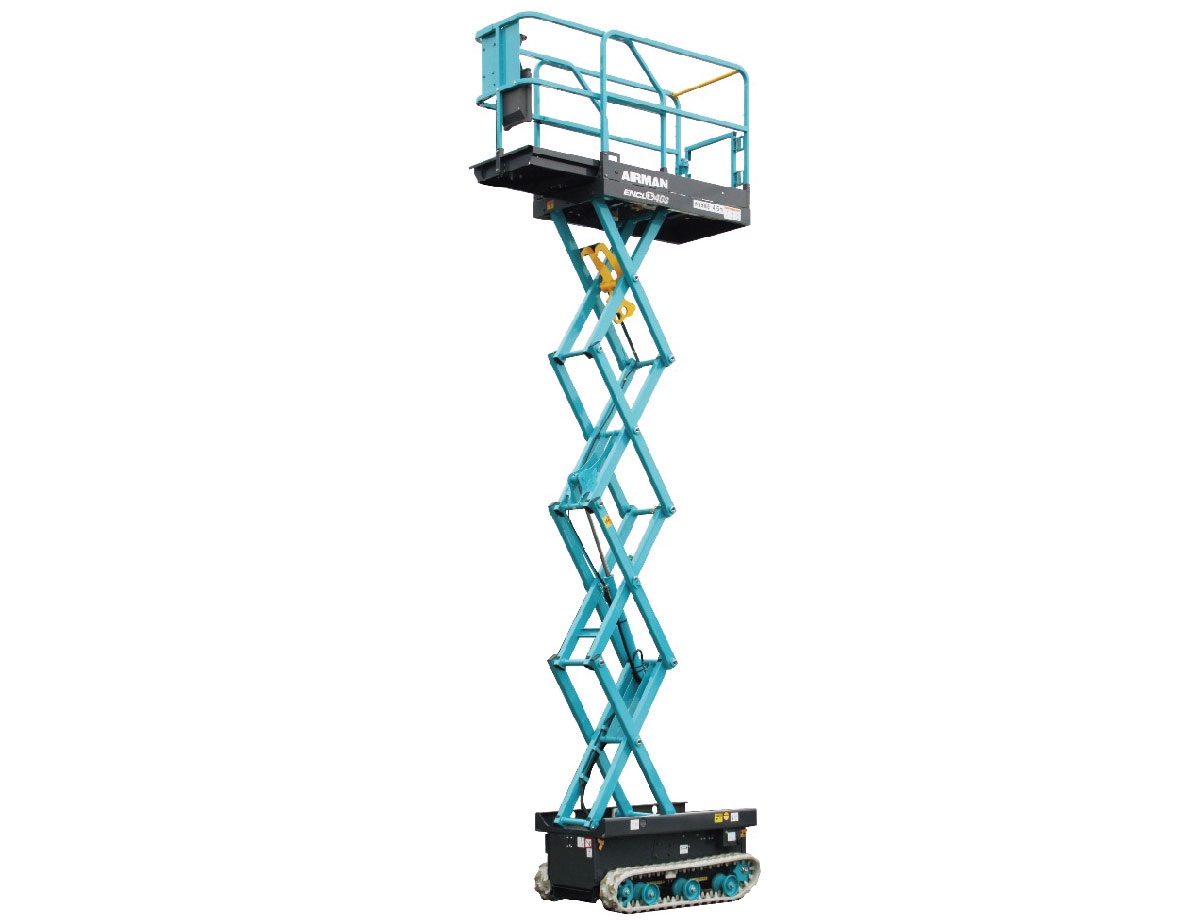

ENCL040[S]-3
In just 10 years of beginning production, we now have No.1 market share in the Japanese domestic market.
(Scissors lift market)
All of our models have advanced safety functions and feature a compact design.
If you are looking for safer, smaller equipment, we can offer the best solutions for you.
Specification
| MODEL | ENCL040[S]-3 |
|---|---|
| *WORK PLATFORM | |
| Max load (kg) | 250 [220] |
| Max. height above ground (mm[inch]) | 4000[157.5] |
| *SCISSORS LIFT | |
| Type | 4-stage X-type pantographs with one end fixed |
| Lifting speed (up / down) (sec) | 19/22 |
| *TRAVEL MOTOR | |
| Driving | DC Motor |
| Travel speed (max./min.) (km/hr) | 0 - 2.0 |
| Gradeability (°) | 14 |
| Min. turning radius (mm[inch]) | Turning on the spot |
| Traveling | Rubber crawler type |
| *POWER SUPPLY | |
| Input power supply (V) | Single-phase AC 100～110 / 200～240 |
| Battery voltage (V) | DC 24 |
| Battery capacity (5 hour rate) (Ah) | 100 |
| Battery | EB100×2 |
| *DIMENSION & WEIGHT | |
| Length x Width x Height (mm[inch]) | 1390×780×1850 [54.7×30.7×72.8] |
| Machine weight (kg) | 630 [680] |
|
|
