Motor Air Compressor

Oil Free (SAD / SMAD / SWD Series)

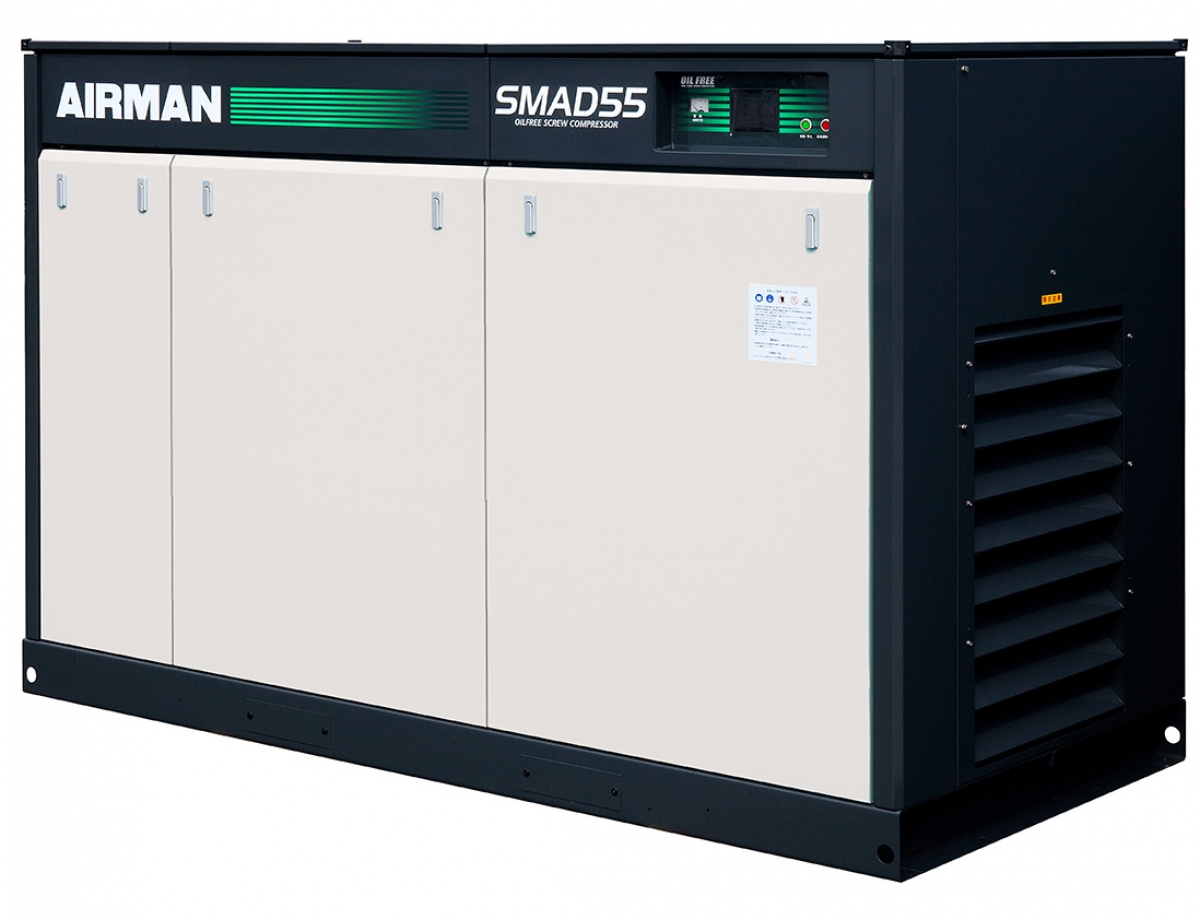

SMAD55PD-5A/6A

AIRMAN motor air compressor has more than 50 years experience with Japanese customers.

In most of industrial companies, to save the cost of electricity is important.

Our advansed energy saving system can improve your cost issues, especially SMS series (Outdoor type) can be installed on out side of buildings, means you do not need to prepare a compressor room inside buildings.

Specification

MODEL SMAD55PD-5A/6A
*COMPRESSOR
TypeRotating screw type, 2-stage compressed unlubricated type
Air Delivery (m3/min)8.5
Discharge pressure (MPa)0.7
Capacity control systemRotating screw type, 2-stage compressed unlubricated type
Lubricant oil capacity (L)16
Discharge air pipe diameter A (inch)50 (2'')
*MOTOR
TypeFully-enclosed, external fan, 3-phase squirrel cage induction motor
Output (kW)55
Frequency (Hz)50/60
Voltage (V)200/200•220 [400/400•440]
No. of poles (P)2
Starting systemStar Delta
*APPROX. DIMENSION AND APPROX. WEIGHT
Overall width (mm)2,650
Overall depth (mm)1,250
Overall height (mm)1,740
Weight (kg)1,630 (1,530)
Noise level dB (A)69
*DRYER
Input (chiller nominal input) (kW)2.5/3.1 (2.2)
Outlay dew point (°C)10 (under pressure)
CoolantR407C
  • Air delivery is converted at intake conditions at atmospheric pressure and 30°C. As for guaranteed value of air delivery, please contact us if necessary.



  • The high-pressure specifications are an option at the time of manufacture.



  • Be sure to use Long-Life SP genuine Hokuetsu compressor oil.



  • Weight figures in parentheses show the weight of the unit without dryer.



  • The noise value is converted to anechoic chamber conditions at a distance of 1.5 m from the pump front (operating side) and a height of 1.2m (1.0m for SMS15/22/37) when the pump is operating at full load. Depending on the installation environment (effects of surrounding reverberation, etc.), the noise level when the system is actually installed may be higher than the level indicated here. The noise level also changes when the capacity control operation is in effect.



  • Outlet dew point is at an ambient temperature of 30°C.



  • When using in cold weather regions (2°C or below), the optional tape heater is required. (Cold weather region specifications).



  • Discharge air pipe diameter is 32A (1 ¼’’) for specifications without dryer. * A separate air tank with sufficient capacity must be installed. * The listed weights of oil-free models are the weights before installation of the Top Runner Motor.
