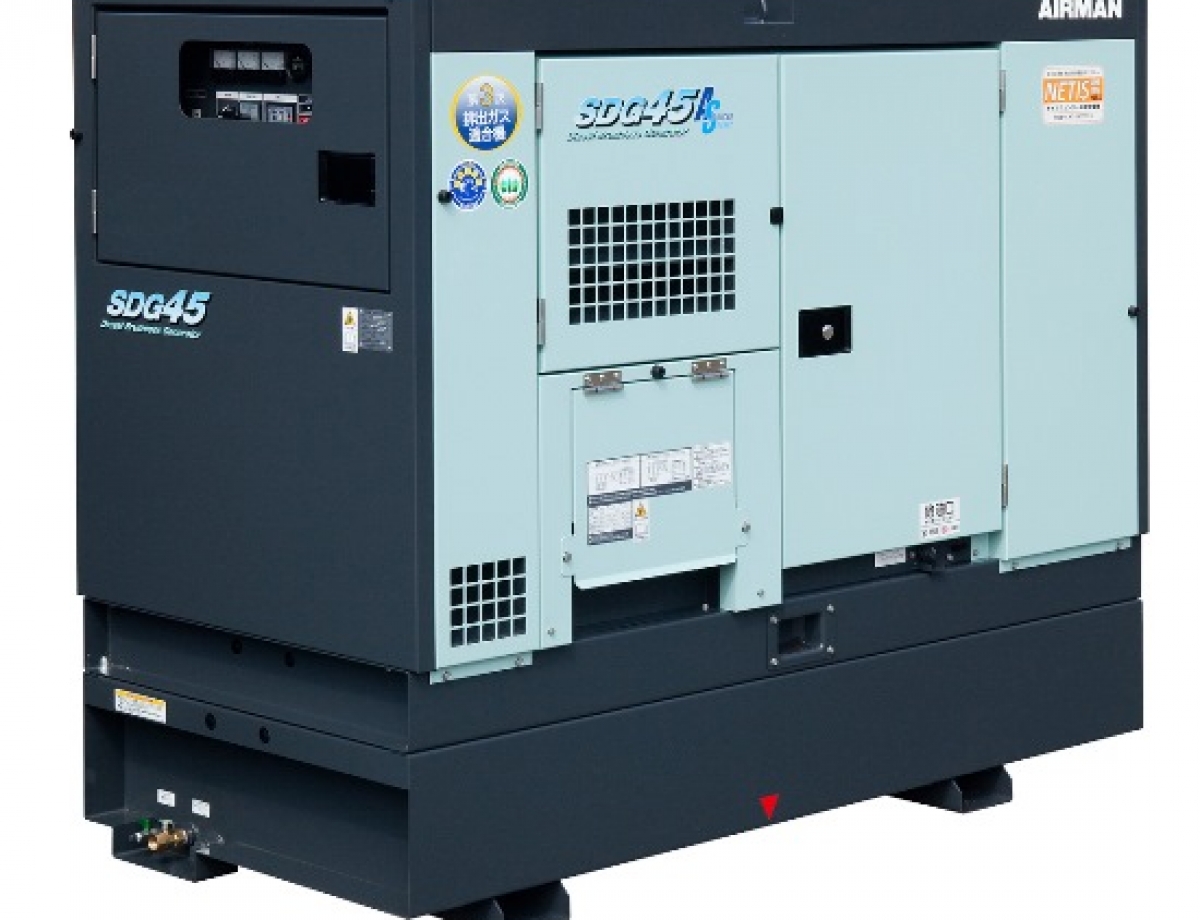

SDG45AS-7B1
Since 1970, Airman has developed and sold the brash-less generators, our advanced generators which is developed by our long experience and original technologies, succeeded to spread through our new machines.
AIRMAN will strive to develop our products which has the concept "Environmentally and ECO" friendly day by day.
Specification
| MODEL | SDG45AS-7B1 |
|---|---|
| *GENERATOR | |
| Type | Dual Voltage |
| Frequency (Hz) | 50/60 |
| Prime Output (kVA) | 37/45 |
| Standby Output (kVA) | 40.7/49.5 |
| Voltage (V) | 200/400 | 220/440 |
| Power Factor (%) | 3-phase 0.8（lagging） / Single-phase 1.0 |
| *ENGINE | |
| Make/Model | KUBOTA V3800-DI-T-K3A |
| Type | Direct-Injection, Turbo-Charged |
| Rated Output PS (kW) | 51.7(38) | 62(45.6) |
| Rated Speed (min-1) | 1500/1800 |
| Fuel Tank Capacity (L) | 325 |
| Engine Oil Capacity (L) | 84 |
| Battery | 80D26R×1 |
| *DIMENSION AND WEIGHT | |
| Overall Length mm (inch) | 1995（78.5） |
| Overall Width mm (inch) | 950（37.4） |
| Overall Height mm (inch) | 1670（65.7） |
| Operating Weight (kg) | 1500 |
| *OTHER | |
| Sound Power Level in Decibels (dB) | 79 / 82 |
| Sound Pressure Level dB (A) | 52 / 54 |
| Designated Emissions Regulation | JPN Stage 3 |
|
|
