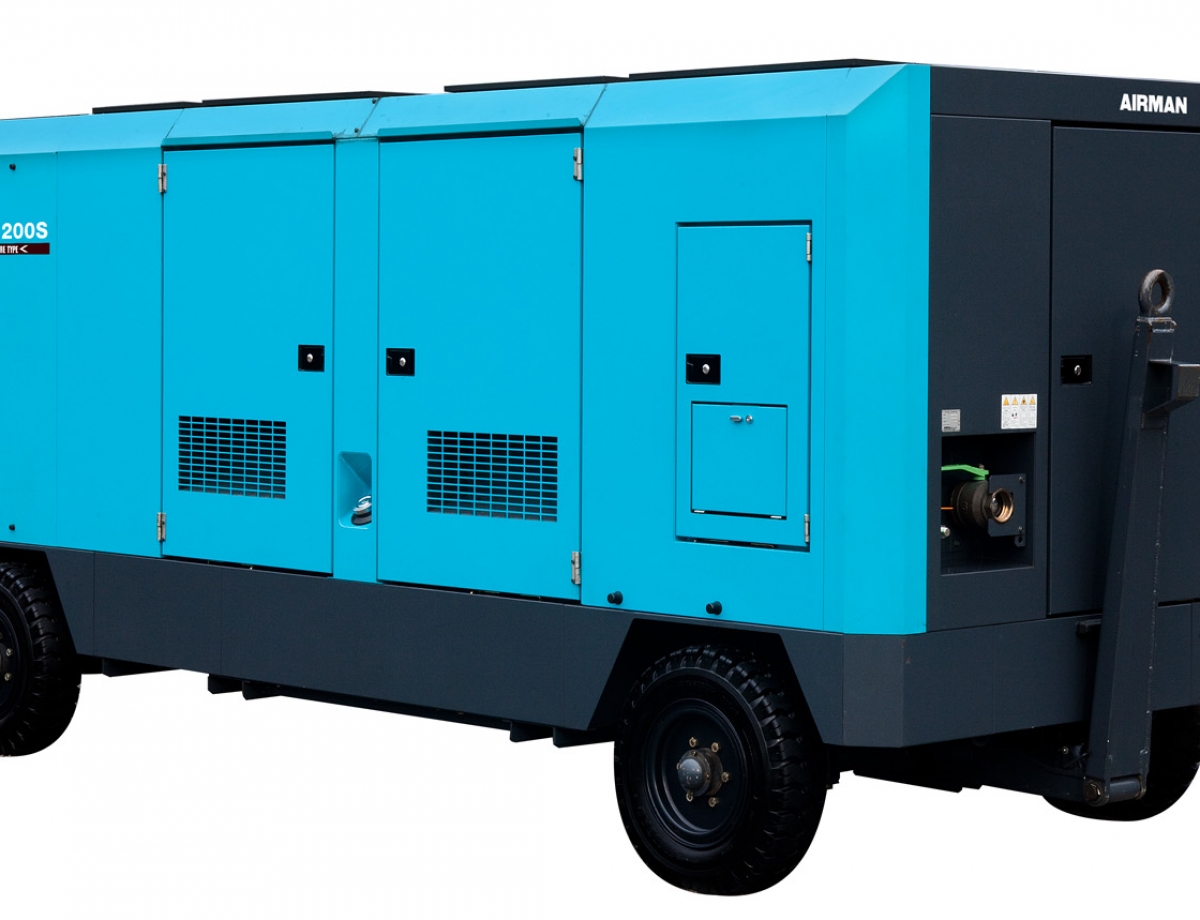

PDSK1200S-4C1
AIRMAN diesel engine air compressor has more than 80 years experience with Japanese customers.
Our flexible and high durability compressor can be usuful for long time in Civil Construction/Foundation/ hill slope reinforcement/Water well drilling/Quarry and Mining/Shipyard (Sand blasting & Spraying)/ Oil & Gas (sand blasting, spraying, pipe leak test).
Please send your inquiry to us, our distributor will recommend you the suitable model.
Specification
| MODEL | PDSK1200S-4C1 |
|---|---|
| *COMPRESSOR | |
| Type | Rotary Twin Screw, Single-Stage, Oil-cooled |
| Free Air Delivery (m3/min) | 34 |
| Rated Operating Pressure MPa (kgf/cm2) [psi] | 2.45（25.0）[355] |
| Compressor Oil Capacity (L) | 190 |
| Air Outlet Valve | 3/4"×1, 3"×1 |
| *ENGINE | |
| Make/Model | CATERPILLAR C-15 |
| Type (4 Cycle, Water-Cooled) | Direct-Injection, Turbo-Charged, Intercooled |
| Rated Output PS (kW) / rpm | 548（403）/ 1800 |
| Engine Oil Capacity (L) | 61 |
| Fuel Tank Capacity (L) | 874 |
| Battery | 225H52×2 |
| *DIMENSION & WEIGHT | |
| Overall Length mm (inch) | 5600（220.5） |
| Overall Width mm (inch) | 2110（83.1） |
| Overall Height mm (inch) | 2500（98.4） |
| Dry (Operating) Weight (kg) | 7800（8800） |
| Tire Size | 7.00-15 12PR（I）×4W |
| *OTHER | |
| Sound Power Level in Decibels (dB) | 114 |
| Sound Pressure Level dB (A) | 82 |
| Designated Emissions Regulation | Tier 3 |
|
|
