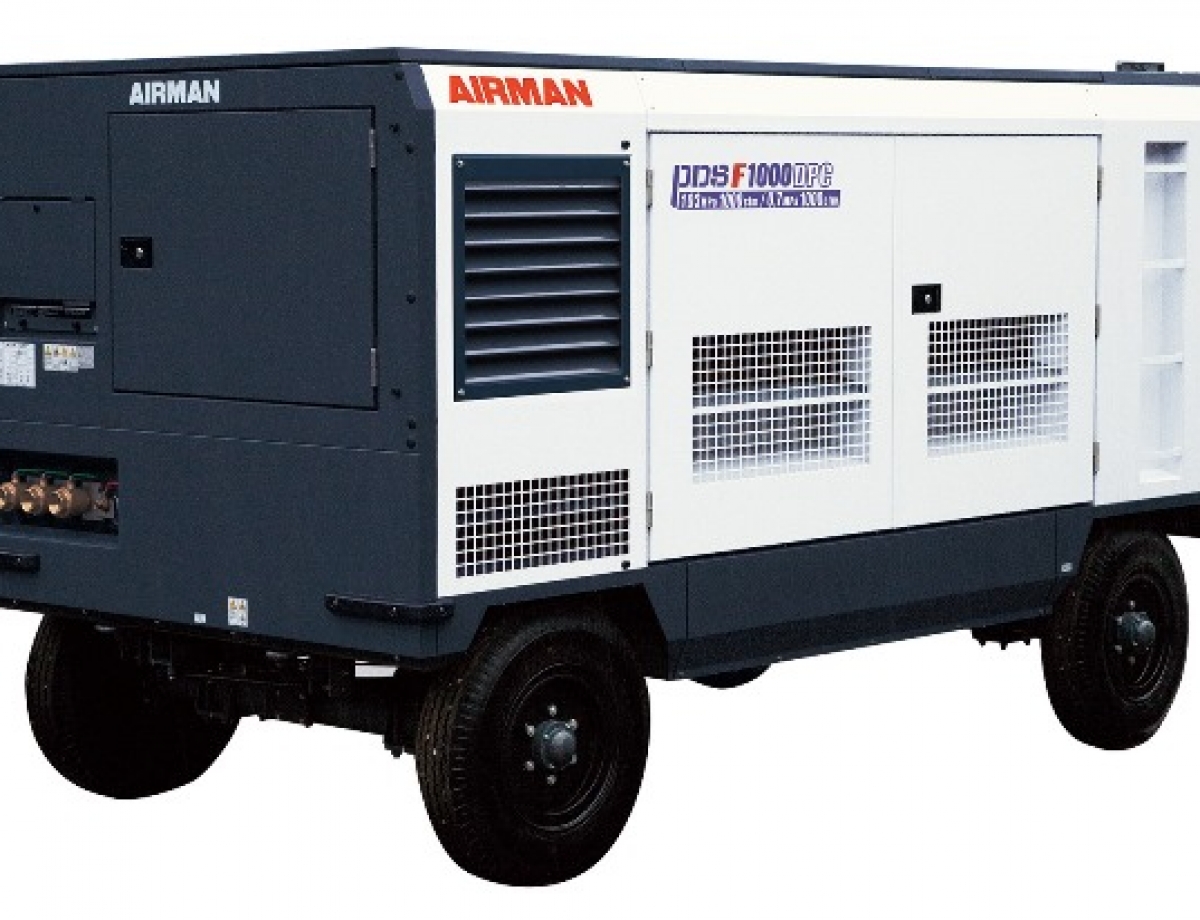

PDSF1000DPC-4C5
AIRMAN diesel engine air compressor has more than 80 years experience with Japanese customers.
Our flexible and high durability compressor can be usuful for long time in Civil Construction/Foundation/ hill slope reinforcement/Water well drilling/Quarry and Mining/Shipyard (Sand blasting & Spraying)/ Oil & Gas (sand blasting, spraying, pipe leak test).
Please send your inquiry to us, our distributor will recommend you the suitable model.
Specification
| MODEL | PDSF1000DPC-4C5 |
|---|---|
| *COMPRESSOR | |
| Type | Rotary Twin Screw, Single-Stage, Oil-cooled |
| Free Air Delivery (m3/min) | 27.5 |
| Rated Operating Pressure MPa (kgf/cm2) [psi] | 1.03 (10.5) [150] / 0.7 (7.14) [102] |
| Compressor Oil Capacity (L) | 110 |
| Air Outlet Valve | 3/4"×1, 2"×3 |
| *ENGINE | |
| Make/Model | KOMATSU SAA6D125E-5 |
| Type (4 Cycle, Water-Cooled) | Direct-Injection, Turbo-Charged, Intercooled |
| Rated Output PS (kW) / rpm | 335.8（247）/ 1900 |
| Engine Oil Capacity (L) | 41 |
| Fuel Tank Capacity (L) | 600 |
| Battery | 170F51×2 |
| *DIMENSION & WEIGHT | |
| Overall Length mm (inch) | 4370（172.0） |
| Overall Width mm (inch) | 2000（78.7） |
| Overall Height mm (inch) | 2290（90.2） |
| Dry (Operating) Weight (kg) | 5100（5790） |
| Tire Size | 7.50-16 14PR×4W |
| *OTHER | |
| Sound Power Level in Decibels (dB) | 105 |
| Sound Pressure Level dB (A) | 75 |
| Designated Emissions Regulation | JPN Stage 3 |
|
|
