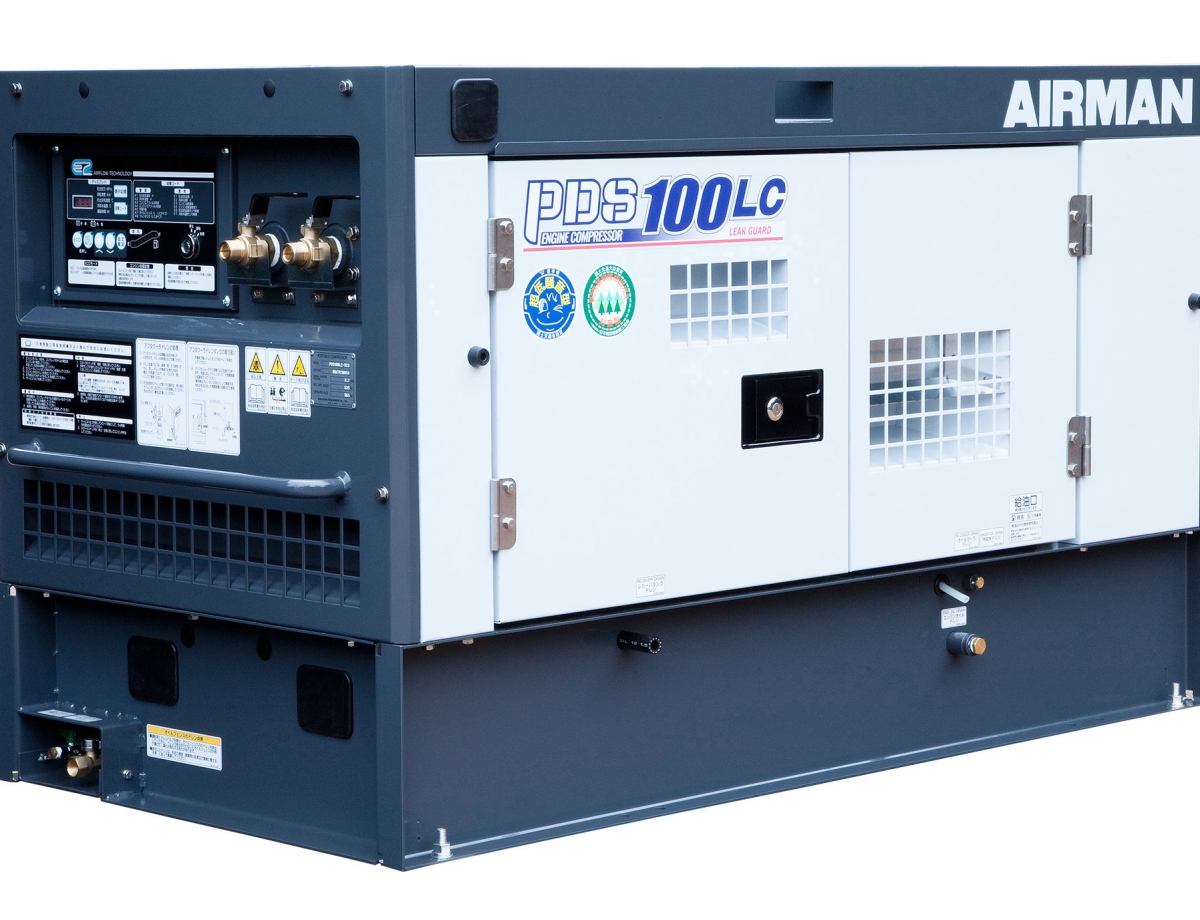

PDS100LC-5C5
AIRMAN diesel engine air compressor has more than 80 years experience with Japanese customers.
Our flexible and high durability compressor can be usuful for long time in Civil Construction/Foundation/ hill slope reinforcement/Water well drilling/Quarry and Mining/Shipyard (Sand blasting & Spraying)/ Oil & Gas (sand blasting, spraying, pipe leak test).
Please send your inquiry to us, our distributor will recommend you the suitable model.
Specification
| MODEL | PDS100LC-5C5 |
|---|---|
| *COMPRESSOR | |
| Type | Rotary Twin Screw, Single-Stage, Oil-cooled |
| Free Air Delivery (m3/min) | 2.8 |
| Rated Operating Pressure MPa (kgf/cm2) [psi] | 0.7 (7.14) [102] |
| Compressor Oil Capacity (L) | 9 |
| Air Outlet Valve | 3/4"×2 |
| *ENGINE | |
| Make/Model | KUBOTA D1105-K3A |
| Type (4 Cycle, Water-Cooled) | Swirl-Chamber |
| Rated Output PS (kW) / rpm | 26.1（19.2）/3400 |
| Engine Oil Capacity (L) | 4.5 |
| Fuel Tank Capacity (L) | 33 |
| Battery | 80D26R×1 |
| *DIMENSION & WEIGHT | |
| Overall Length mm (inch) | 1625（64.0） |
| Overall Width mm (inch) | 800（31.5） |
| Overall Height mm (inch) | 905（35.6） |
| Dry (Operating) Weight (kg) | 525（565） |
| Tire Size | - |
| *OTHER | |
| Sound Power Level in Decibels (dB) | 94 |
| Sound Pressure Level dB (A) | 67 |
| Designated Emissions Regulation | JPN Stage 3 |
|
|
