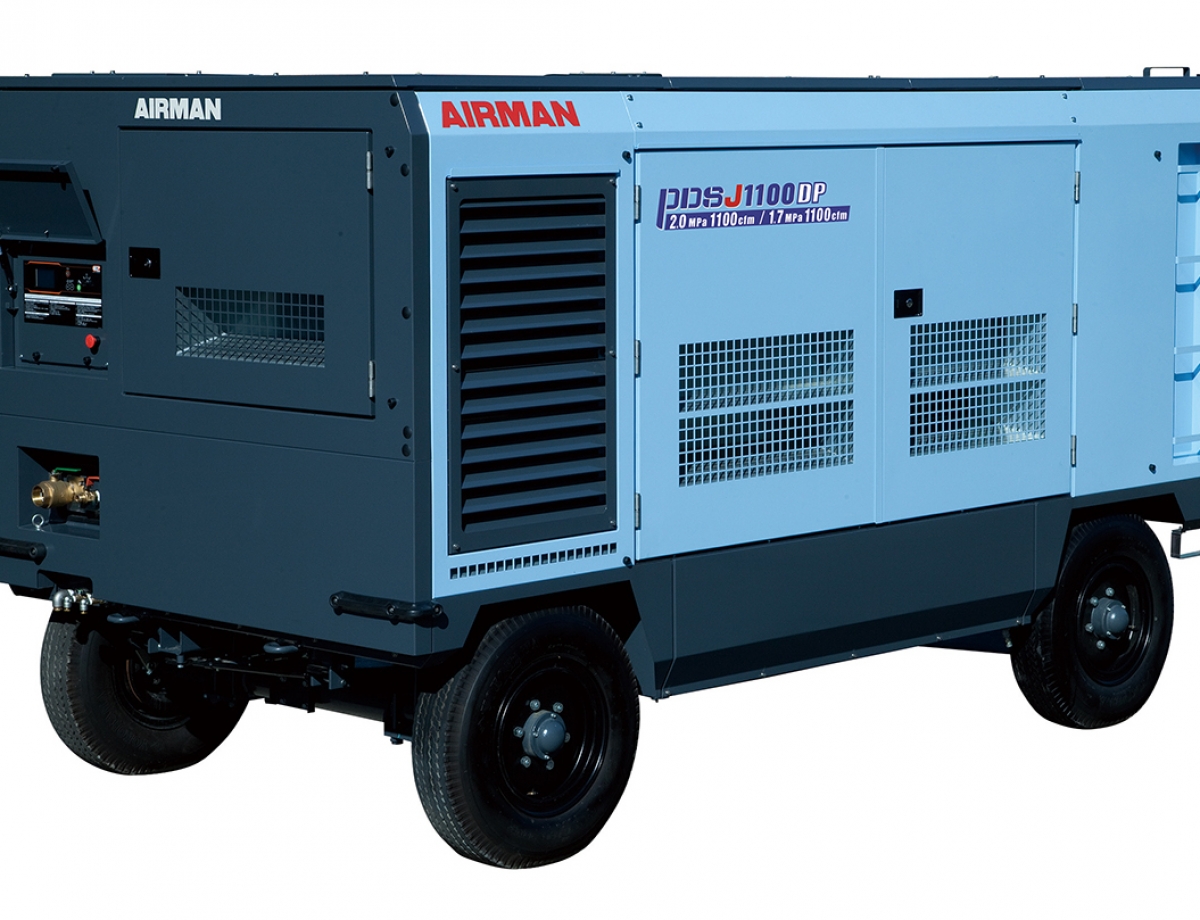

PDSJ1100DP-4C5
AIRMAN diesel engine air compressor has more than 80 years experience with Japanese customers.
Our flexible and high durability compressor can be usuful for long time in Civil Construction/Foundation/ hill slope reinforcement/Water well drilling/Quarry and Mining/Shipyard (Sand blasting & Spraying)/ Oil & Gas (sand blasting, spraying, pipe leak test).
Please send your inquiry to us, our distributor will recommend you the suitable model.
Specification
| MODEL | PDSJ1100DP-4C5 |
|---|---|
| *COMPRESSOR | |
| Type | Rotary Twin Screw, Two-Stage, Oil-cooled |
| Free Air Delivery (m3/min) | 29.7 |
| Rated Operating Pressure MPa (kgf/cm2) [psi] | 1.7（17.4）[250] / 2.0（20.4）[290] |
| Compressor Oil Capacity (L) | 98 |
| Air Outlet Valve | 3/4"×1, 2"×1 |
| *ENGINE | |
| Make/Model | KOMATSU SAA6D 125E-5-C |
| Type (4 Cycle, Water-Cooled) | Direct-Injection, Turbo-Charged, Intercooled |
| Rated Output PS (kW) / rpm | 384.6（282.9）/ 2100 |
| Engine Oil Capacity (L) | 41 |
| Fuel Tank Capacity (L) | 700 |
| Battery | 225H52×2 |
| *DIMENSION & WEIGHT | |
| Overall Length mm (inch) | 4370（172.0） |
| Overall Width mm (inch) | 2000（78.7） |
| Overall Height mm (inch) | 2290（90.2） |
| Dry (Operating) Weight (kg) | 5520（6270） |
| Tire Size | 7.50-16 14PR×4W |
| *OTHER | |
| Sound Power Level in Decibels (dB) | 102 |
| Sound Pressure Level dB (A) | 73 |
| Designated Emissions Regulation | JPN Stage 3 |
|
|
