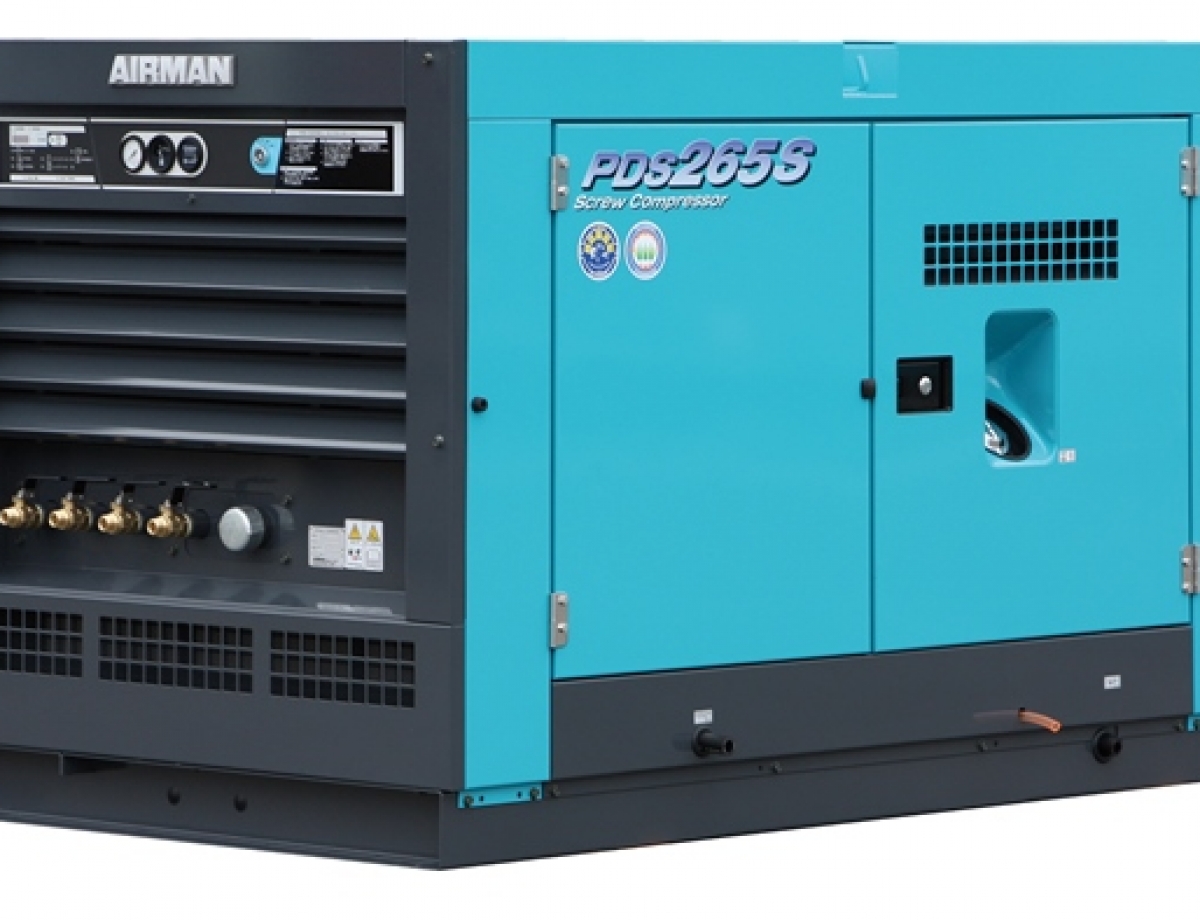

Diesel Engine Air Compressor

Standard Type (PDS Series)

PDS265S-5B2

AIRMAN diesel engine air compressor has more than 80 years experience with Japanese customers.

Our flexible and high durability compressor can be usuful for long time in Civil Construction/Foundation/ hill slope reinforcement/Water well drilling/Quarry and Mining/Shipyard (Sand blasting & Spraying)/ Oil & Gas (sand blasting, spraying, pipe leak test).

Please send your inquiry to us, our distributor will recommend you the suitable model.

Specification

MODEL PDS265S-5B2
*COMPRESSOR
TypeRotary Twin Screw, Single-Stage, Oil-cooled
Free Air Delivery (m3/min)7.5
Rated Operating Pressure MPa (kgf/cm2) [psi]0.69 (7.0) [100]
Compressor Oil Capacity (L)30
Air Outlet Valve3/4"×4, 2"×1(OP)
*ENGINE
Make/ModelYANMAR 4TNV98T-NHK
Type (4 Cycle, Water-Cooled)Direct-Injection, Turbo-Charged
Rated Output PS (kW) / rpm83.2 (61.2) / 2500
Engine Oil Capacity (L)10.5
Fuel Tank Capacity (L)115
Battery95D31RX1
*DIMENSION & WEIGHT
Overall Length mm (inch)2050 (80.7)
Overall Width mm (inch)1200 (47.2)
Overall Height mm (inch)1250 (49.2)
Dry (Operating) Weight (kg)1140 (1290)
Tire Size-
*OTHER
Sound Power Level in Decibels (dB)98
Sound Power Level dB (A)69
Designated Emissions RegulationJPN Stage 2
  • Specifications are subject to change without notice.
  • Sound pressure level is measured at 7m in 4 directions average.
