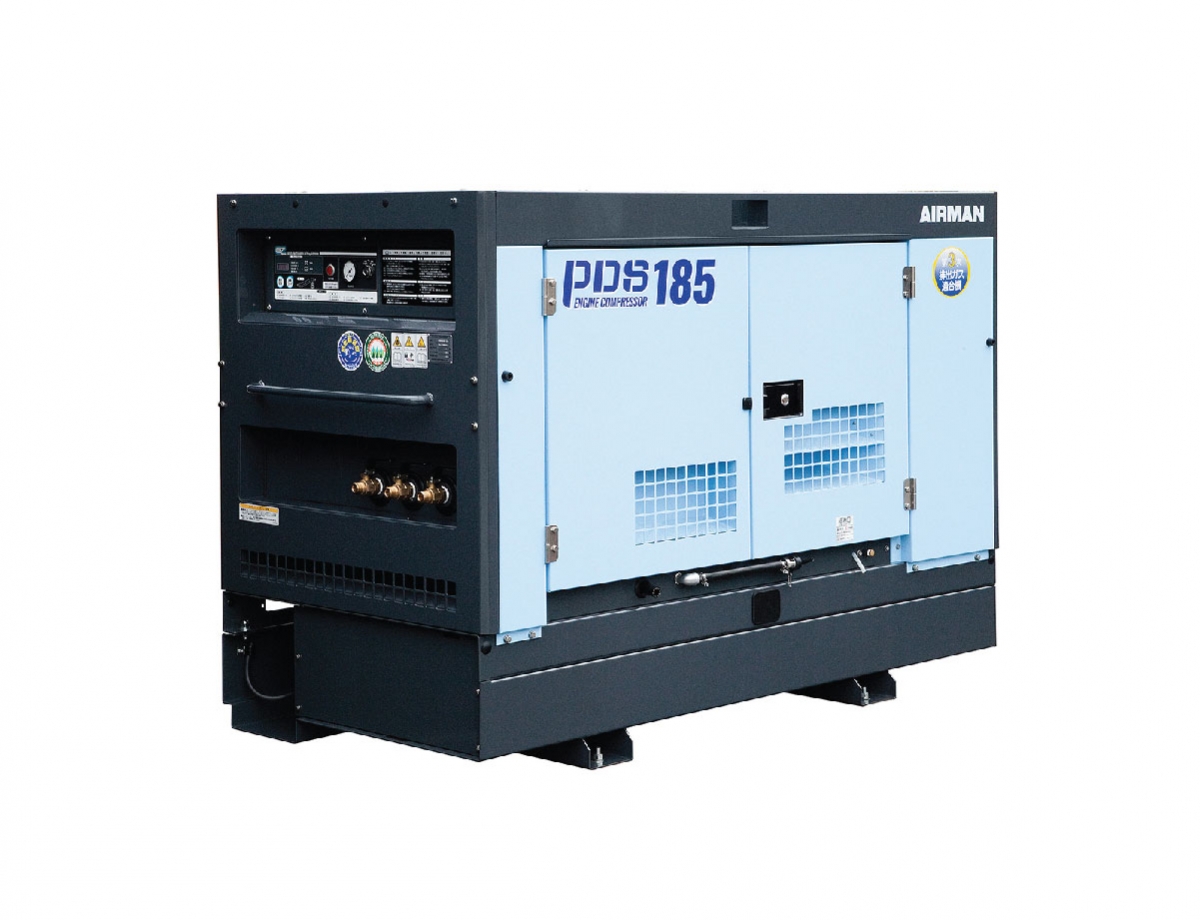

Diesel Engine Air Compressor
AIRMAN diesel engine air compressor has more than 80 years experience with Japanese customers.
Our flexible and high durability compressor can be usuful for long time in Civil Construction/Foundation/ hill slope reinforcement/Water well drilling/Quarry and Mining/Shipyard (Sand blasting & Spraying)/ Oil & Gas (sand blasting, spraying, pipe leak test).
Please send your inquiry to us, our distributor will recommend you the suitable model.
|Type||Rotary Twin Screw, Single-Stage, Oil-cooled|
|Free Air Delivery (m3/min)||5.2|
|Rated Operating Pressure MPa (kgf/cm2) [psi]||0.7 (7.14) |
|Compressor Oil Capacity (L)||15|
|Air Outlet Valve||3/4"x3|
|Type (4 Cycle, Water-Cooled)||Direct Injection|
|Rated Output PS (kW) / rpm||47.5 (34.9) / 3000|
|Engine Oil Capacity (L)||7.4|
|Fuel Tank Capacity (L)||92|
|*DIMENSION & WEIGHT|
|Overall Length mm (inch)||1970 (77.6)|
|Overall Width mm (inch)||950 (37.4)|
|Overall Height mm (inch)||1300 (51.2)|
|Dry (Operating) Weight (kg)||825 (925)|
|Sound Power Level in Decibels (dB)||94|
|Sound Power Level dB (A)||68|
|Designated Emissions Regulation||JPN Stage 3|
